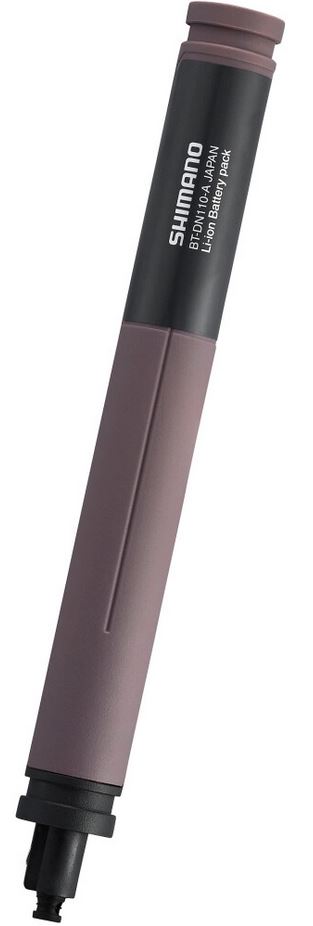

Battery for Shimano DI2 shifting systems
*****Dangerous materials notice: UN 3480, lithium-ion batteries, 9, (E); Packaging: 4G box, cardboard; Quantity per transport category: 1 kg = 4 points (value) *****
When converting to the stick battery, the following additional parts are required:

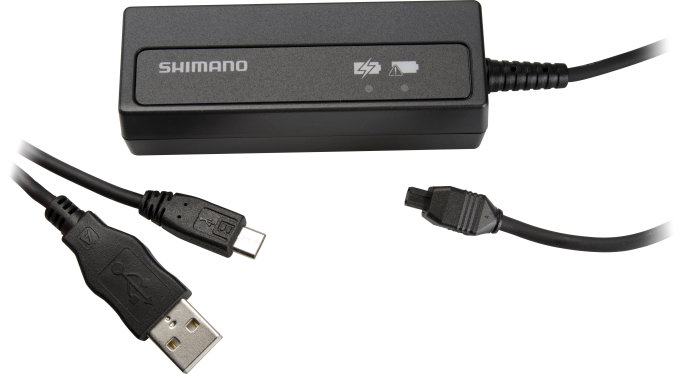

- Charger for stick battery Di2

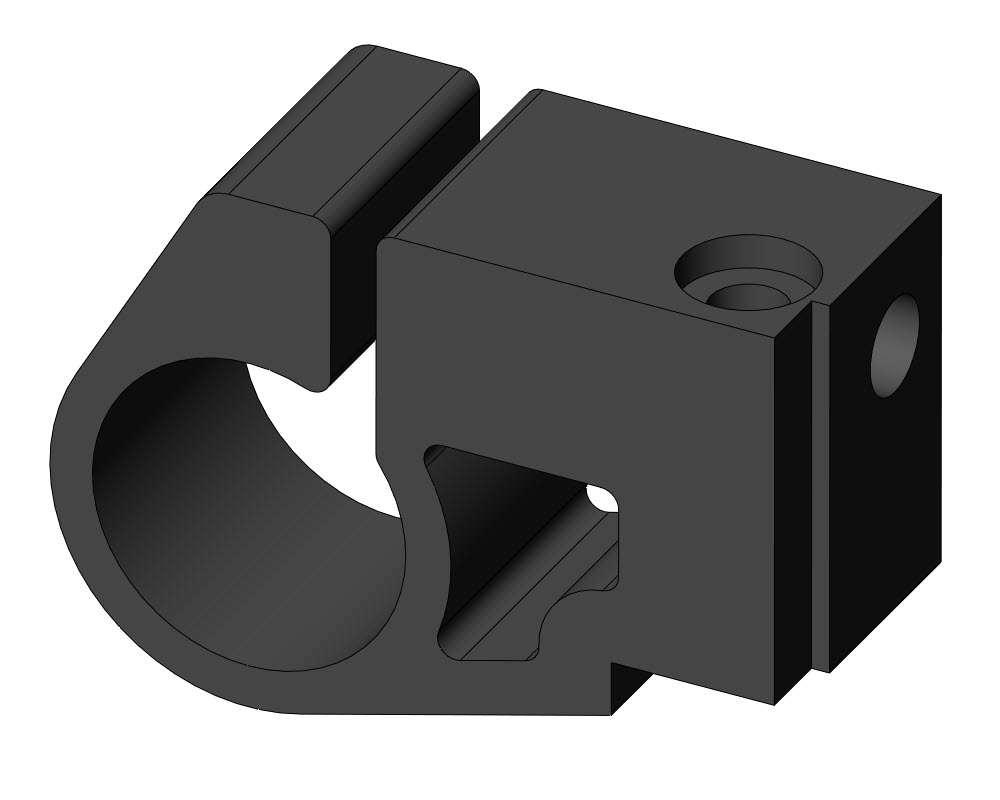

- stick battery Di2 battery holder
compatible for 3x9, 2x10, 3x10, 2x11 and 3x11 drivetrains
consisting of:
- 2 pcs. inner gear cable 1.2 mm
- 2 pcs. end cap 1.2 mm
- 2 pcs. outer cable housing, longitudinally reinforced 1500mm
- 2 pcs. spiral reinforced outer cable housing 1000mm
- 4 pcs. End caps 6mm
- 4 pcs. End caps 4mm
- 2 pcs. intermediate sleeve shift cable
- Cable ties. 8 pcs.3.5x150 mm
- Cable ties. 4 pcs. 2.5x98 mm
incl. intermediate sleeve for separating the shift cables at the height of the bottom bracket support.
This means that the spiral-reinforced cable housing can be used at the top and the longitudinally reinforced cable housing at the bottom. This reduces the required shifting force while maintaining stability in the required range.
- Assembly instructions shift cable replacement20030505
(without shift cable guard and aluminium end sleeve!)
- MA: 8100200130 Shifter cable replacement.PDF-
consisting of:
- 1 inner shift cable 1.2 mm
- 1 end cap 1.2 mm
- Outer cable cover, longitudinally reinforced 1500mm
- Spiral-reinforced outer cable cover 1000mm
- 2 end caps 6mm
- 2 end caps 4mm
- 1 Intermediate sleeve shift cable
- Cable tie. 4 pcs.3.5x150 mm
- Cable ties. 2 pcs.2,5x98 mm
incl. intermediate sleeve for separating the shift cables at the height of the bottom bracket support.
This means that the spiral-reinforced cable housing can be used at the top and the longitudinally reinforced cable housing at the bottom. This reduces the required shifting force while maintaining stability in the required range.
