Electrical components

Drive unit for SB35-37cm Lifting mechanism

Access level: Standard (PS1)

incl. motor, lifting spindles, housing and fastening screws

€4,130.10*

Item number: E8061300060

Details

Drive unit for SB38-40cm Lifting mechanism

Access level: Standard (PS1)

incl. motor, lifting spindles, housing and fastening screws

€4,130.10*

Item number: E8061300061

Details

Drive unit for SB41-43cm Lifting mechanism

Access level: Standard (PS1)

incl. motor, lifting spindles, housing and fastening screws

€4,130.10*

Item number: E8061300062

Details

Drive unit for SB44-48cm Lifting mechanism

Access level: Standard (PS1)

incl. motor, lifting spindles, housing and fastening screws

€4,130.10*

Item number: E8061300063

Details

Motor control unit (without charging socket)

Access level: Standard (PS1)

for lifting movement Lift el. Control housing with motor control card and fitted sockets 1 and 2.

€491.50*

Item number: E8061300010

Details

Wiring harness 1 with XLR battery connector

Access level: Standard (PS1)

Connection cable from motor control housing to Li-Ion battery (XLR connector) and motor incl. 2 flat receptacles and 2 flat plugs for connecting the motor

€214.50*

Item number: E8061300019

Details

Lift el. wiring harness plug 2

Access level: Standard (PS1)

with red and green switch, limit switch top and bottom and socket for connection to the motor control unit

€251.50*

Item number: E8061300020

Details

Ansmann battery holder

Access level: Standard (PS1)

for mounting the Li-Ion battery. Sheets riveted and padded with foam rubber. With Velcro tape and fastening screws.

€121.80*

Item number: E8061300122

Details

Crossbar holder for Ansmann battery

Access level: Standard (PS1)

for attaching the battery holder to cross tube 1, with fastening material

€44.80*

Item number: E8061300123

Details

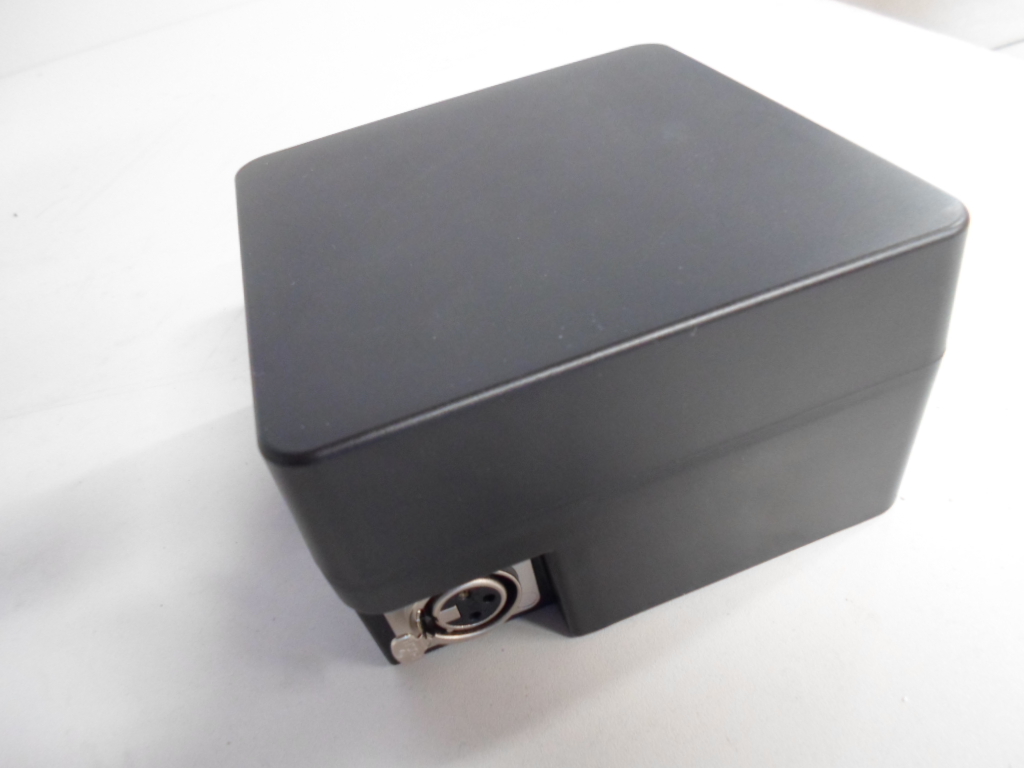

Li-Ion battery for electric lift

Access level: Standard (PS1)

25.9V 10.4Ah Charger for battery must be ordered separately: 8061300046

€710.80*

Item number: E8061300045

Details

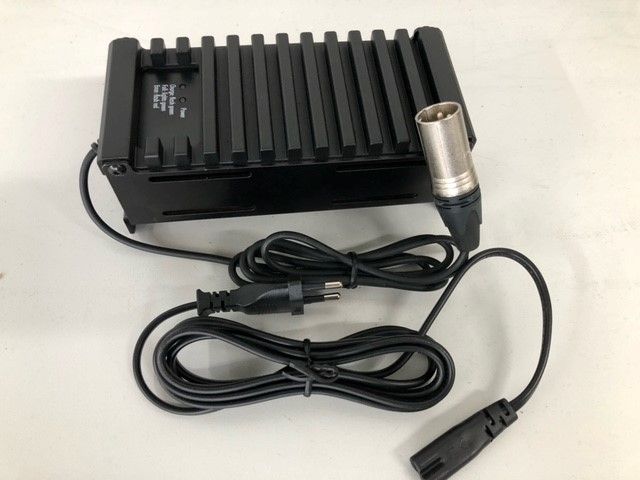

Charger for Lift el (Ansmann Lio battery)

Access level: Standard (PS1)

25,9V 1500mA

€148.90*

Item number: E8061300046

Details

Adapter plug charger Lift XLR --> Rosenberger plug

Access level: Standard (PS1)

€93.30*

Item number: E8061300127

Details

Switch green, for downward movement

Access level: Standard (PS1)

€49.10*

Item number: E8061300000

Details

Switch red, for upward movement

Access level: Standard (PS1)

€49.10*

Item number: E8061300001

Details

XLR right-angle plug 3-pin for el. Lift

Access level: Standard (PS1)

for connecting Ansmann Li-Ion battery Pin 1: + (brown wire) Pin 2: - (ground) (blue wire) Pin 3: not assigned

€32.30*

Item number: E8061300047

Details

Add-on housing with plastic bracket black

Access level: Standard (PS1)

€14.80*

Item number: E8061300005

Details

Klemmteil Schaltergehäuse

Access level: Standard (PS1)

zum Anbau am Rahmen bei abnehmbarem Rahmenvorbau

€26.50*

Item number: E8061300148

Details

Lifting spindle extension with rod end

Access level: Standard (PS1)

For screwing onto lifting cylinders. Please note: Tightening torque 15 Nm. Secure with threadlocker medium-tight on the lifting cylinder. Joint head with high-strength threadlocker. When replacing, care must be taken to ensure that the lifting spindle is not damaged. Furthermore ensure that the lifting spindles are correctly spaced, to prevent increased noise and wear.

€80.90*

Item number: E8061300002

Details
